Under-Bench Washer Disinfection Devices
watch product video

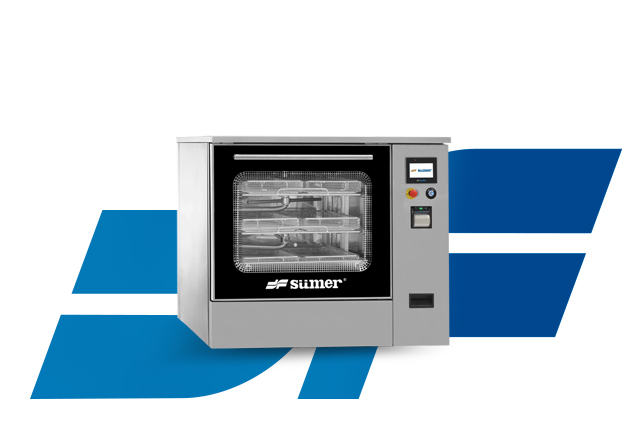

Under-Bench Washer Disinfectors


Our product has been designed to be used for washing and disinfection of heat-resistant and reusable medical devices tools. It is used in the following:



Hospitals,
Outpatient clinics,
Rehabilitation centers,
It is used in laboratories.



It must be used by the expert technical personnel who have completed the required training for washing and disinfection process.

General Characteristics



Touchscreen 4,3"
RS232: Yes
Water Heat Resistance (kW): 5
Drying Resistance (KW): 3
Drying Engine Fan Blowing Flow (m3/h): 100
Elektrical Heating Power (kW): 12,5
Ciculation Power Pump (KW): 0,4
Circulation Pump Electrical Connection Features: 230V±10
Ciculation Pump Flow (d/d): 325
Detergent Dosage Pump: Yes
Neutralizing Dosing Pump: Yes
Electrical Connection: 1P+N 50 Hz, 230 V
Water Drain Pipe Diameter (mm): 25
Structural Characteristics



Body 2,5 mm, AISI 304 Stainless Steel
Cabin 1,5 mm, AISI 316L Stainless Steel
Door Tempered Glass
Panel Coating 1,5 mm, AISI 304 tainless Steel
Piping Silicone Hose, 1,5 mm, AISI 304
Stainless Steel
Chamber Polishing Electro-polishing





Installation Requirements



Supply Water Deionized water processed with
Reverse Osmosis is recommended
for high performance.
Installed Power
175 L		 ~ 15kW, 1 Phase, 230 VAC ±10

Technical Data








  Chamber
Dimensions		 Device
Dimensions		 Packing
Dimensions
Depth (mm) 590 840 1010
Height (mm) 457 840 1150
Width (mm) 618 950 1150
Models ADELA-WD 175
Large Capacity
Touchscreen 4.3"
RS232 +
Water Heast Resistance (Kw) 7.5
Drying Resistance (Kw) 5
Drying Enginr Fan Blowing Flow (m3/h) 50
Circulation Power Pump (Kw) 0.4
Circulation Power Flow(d/d) 325
Detergent Dosage Pump +
Neutralizing Dosing Pump +
Electrical Connection 1P+N 50 Hz, 230 V
Water Drain Pipe Diameter (mm) 25
Basket Layer Quantity 3
DIN Basket 6
Hepa Filter H14, Particle Retention Ratio %99,999
