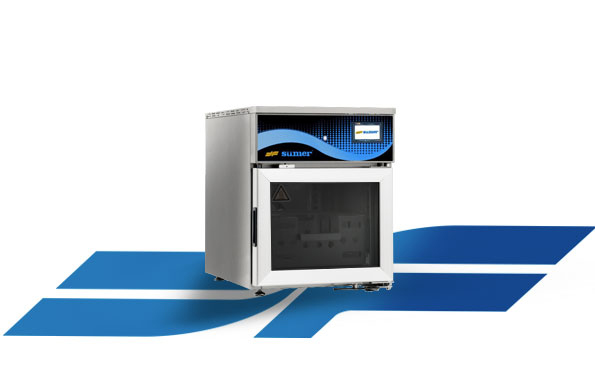

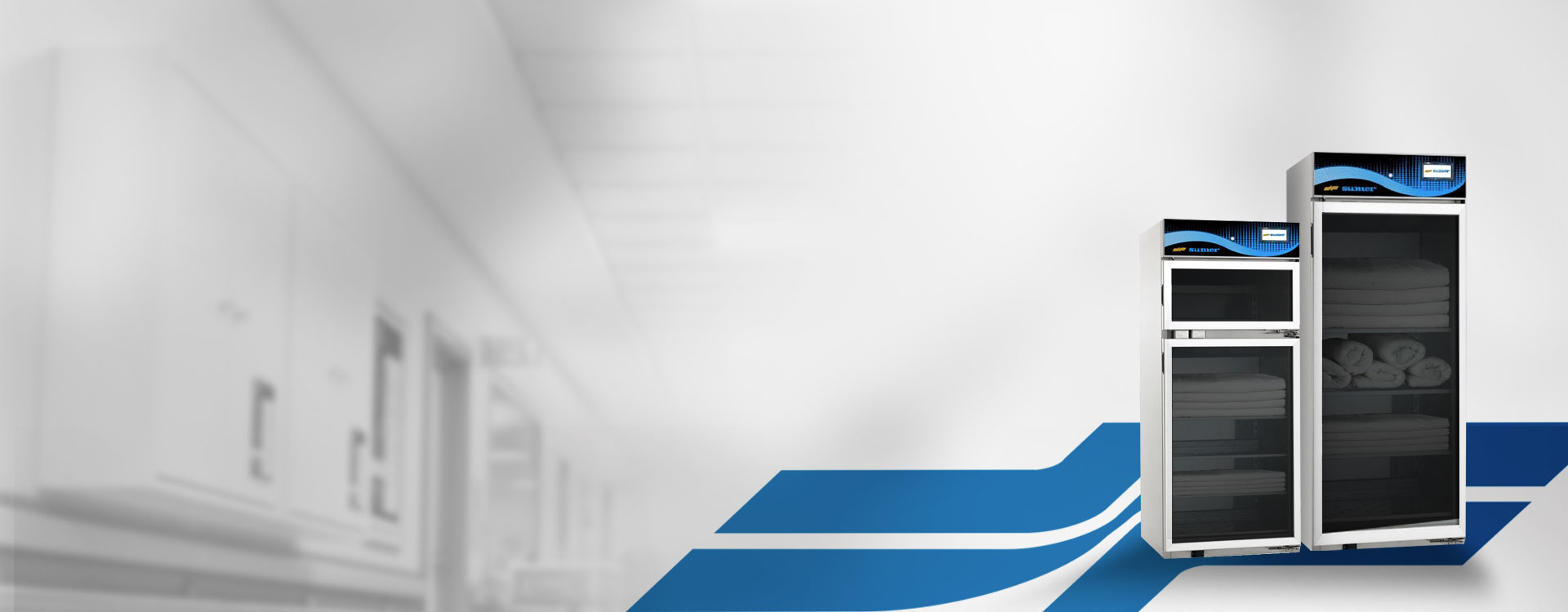

Warming Cabinets
watch product video

The warming cabinets have been designed to bring the surgical fluids and solutions and or blankets, bags, solutions in plastic and glass containers to the temperature levels required for the applications in the hospital and ambulatory treatment venters.

General Characteristics

The device consists of internal and external surfaces made from stainless steel
The door consists of heat-resistant double glass, and can be made from stainless steel optionally
Walls and doors of the device have double layers, and the wall thickness of walls vary between 20 and 25mm depending on the thickness of the material
Air circulation is distributed homogenously with a fan
It is equipped with 4 types of user-friendly control systems selected within the ordering process
The upper and single divisions contain the key for switching between I.V. fluids and IRA/Blankets and control to keep the temperature in the range of 32 -44°C or 32 – 71.1°C. The temperature selection for lower divisions is between 32 and 71.1°C
Any error occurring in the device is shown on the digital screen
The device will produce audiovisual warning when the set temperature exceeds 5.5°C (± 0.5 ° C) and turns the heater off automatically

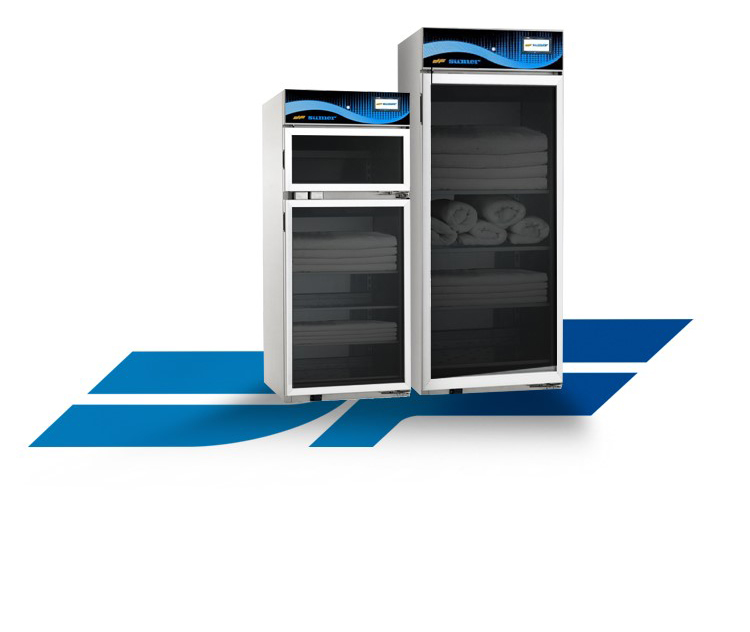

The double cabin control system controls the cabins and the temperatures of both cabins. Upper and lower cabins can operate at different temperatures
Indicators on the Control Panel

Digital temperature indication
The temperature adjustment buttons: buttons for selection of irrigation, blanket and solutions Off/on button for divisions
Temperature error indicator, door status indicator
Indicator that controls the temperatures of divisions actively
Possibility of the required temperature through the control panel, selection of the required operation temperature program

Technical Data



Control System PLC processor, Electronic card
Usage Full Automatic / button and touch screen (Monochrome screen optional)
Screen Type Color TFT, Touch LCD
Screen Dimensions 4,3" and/or 7" (Screens in a different size may be installed on purpose.)
Keyboard Touch
Printer 40 characters/lines, integrated thermal printer (optional)
Communication RS485 Port/USB (Ethernet Optional)
Warning System Visual, auditory and written message warning
Data Storage 30-day data
Process Touch screen Monitoring/Tracking
Mobility Easy direction on 4 rotating wheels
Door Single door/Double door, heat insulated, non-vapor producing and non-moisture producing, tempered glass, magnetic sealed
Door Security System Magnetic lock, open via the encoded/unencoded touchscreen
Fan Material Provides homogenous air. Fan protective grating is made from non-flammable Both partitions can be set at different temperatures for single and double doors models. According to this;
Operation Temperature Range 1. In IV Solution Mode : 32 OC - 44 OC (Only used for the upper cabinet.)
2. In Irrigation/Blanket Mode : 32 OC – 71,1 OC (Used both for the upper and the lower cabinet.)
3. BLT Mode: 32 OC – 94 OC (Used both for the upper and the lower cabinet.)
(Note: The upper cabinet is set in IV Solution Mode by default. )
Lighting Resistant to high temperatures, LED type, automatically on upon door opening, turning on the light via the touchscreen when the door is closed
Wheel System Four wheels, two of which are with brakeage
Alarm System Both visual and auditory alarming
Shelves Mobile, AISI 304 quality stainless steel drawers
Material All parts of the device, both inner and outer, are made from AISI 304 quality stainless steel
Insulation 40 mm thick polyurethane material
Power Value 220 V/50 Hz

Technical Data




MODELS SM SERIES WARMING CABINET
50 100 150 200 250 350 450 550 650 750 850 950 1050
Chamber Volume (L) 50 100 150 200 250 350 450 550 650 750 850 950 1050
Chamber Width (cm) 40 40 56 56 61 67 67 67 67 76 77 77 77
Chamber Height (cm) 32 54 51 68 Down 61 Down 87 Down 80 Down 105 Down 110 Down 113 Down 109 Down 126 Down 143
Up 35 Up 35 Up 35 Up 35 Up 35 Up 35 Up 35 Up 35 Up 35
Chamber Depth (cm) 40 47 53 53 43 43 59 59 67 67 77 77 77
Device Width (cm) 49 53 65 65 70 76 76 76 76 86 86 86 86
Device Height (cm) 64 87 83 100 153 179 172 197 202 205 201 218 235
Device Depth (cm) 61 68 74 74 64 64 80 80 88 88 98 98 98
Packing Width (cm) 61 61 77 77 82 88 88 88 88 97 98 98 98
Packing Height (cm) 80 102 99 116 169 195 188 213 218 221 217 234 251
Packing Depth (cm) 73 80 86 86 76 76 92 92 100 100 110 110 110
Single Door + + + + + + + + + + + + +
Double Door - - - - + + + + + + + + +
Touchscreen 4,3" 4,3" 4,3" 4,3" 4,3" 4,3" 7 7 7 7 7 7 7
RS232 + + + + + + + + + + + + +
Electrical Connection 220 V
50Hz		 220 V
50Hz		 220 V
50Hz		 220 V
50Hz		 220 V
50Hz		 220 V
50Hz		 220 V
50Hz		 220 V
50Hz		 220 V
50Hz		 220 V
50Hz		 220 V
50Hz		 220 V
50Hz		 220 V
50Hz
Device Weight (Kg) 50 75 100 125 150 200 250 300 350 400 450 500 550

Optional Control Systems

Heating between 32°C and 94°C is possible
Possibility of connection to a computer and recording the temperature values through the USB connection Membrane digital screen control system–silver
Membrane digital screen control system– diamond (with keypad)
Membrane digital screen control system– diamond (with keypad)
Mechanical or electronic door locking system with single- or double-door cabin characteristics
